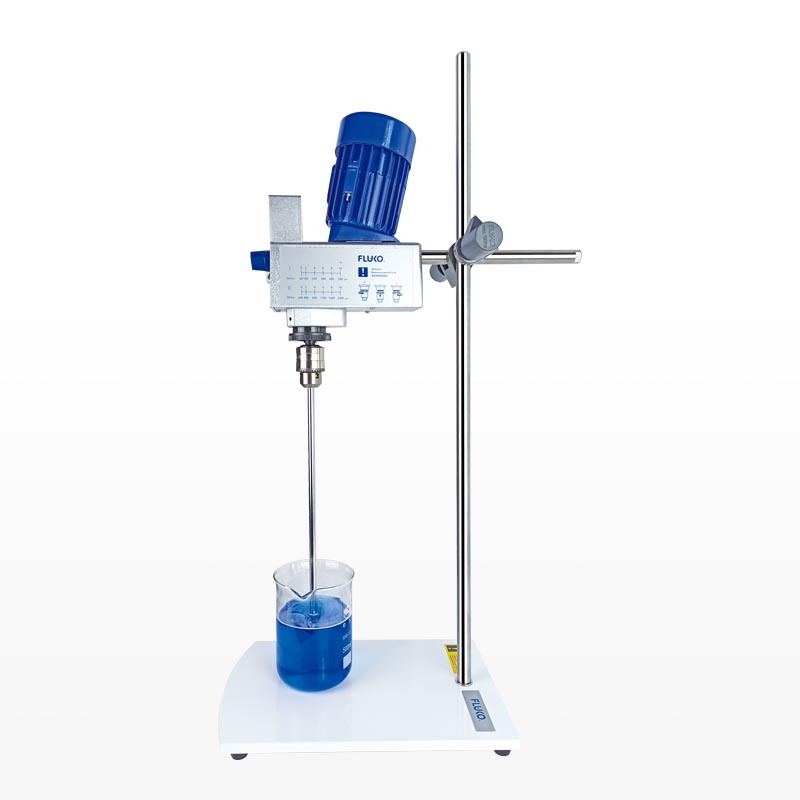

FW30

The FW30 is an economical mechanical mixer with high cost-effectiveness. It is suitable for dispersing and mixing various viscosities, supports speed adjustment and torque compensation, and can meet basic mixing needs.

Product Details

The FW30 balances practicality and cost-effectiveness, making it suitable for dispersion and mixing processes of multi-viscosity systems in the laboratory. It supports flexible speed adjustment, allowing for precise speed adjustments based on material viscosity and mixing requirements; it features automatic torque compensation to handle changes in material viscosity and prevent equipment jamming and speed fluctuations; and it is equipped with a clear speed display that presents operating parameters in real time, meeting the core needs of basic mixing operations.

Technical Parameter

Order #6133901
ModelFW30
Motor power120W
Power supply220V, 50Hz
Working capacity (H2O)50~20000mL
Maximum working viscosity50000cP
Speed rangeLevel I 60~500rpm
Level II 240~2000rpm
Speed controlStepless speed regulation
Speed displayFour figure LCD display
Maximum shaft torque150N.cm
Medium-contact materialSS316L
Overheat protectionYes (70℃)
Standard dispersing agitatorFour-blade agitator
Permissible temperature range5~40℃
Permissible humidity range80%
Agitator fixationDrill chuck
Clench diameter range0.5~10mm
Work frame, stand baseStandard
Process typeBatch processing
Overall dimensions215×310×730
Weight~9kg
PackageCarton
