| Order # | 6915000 |

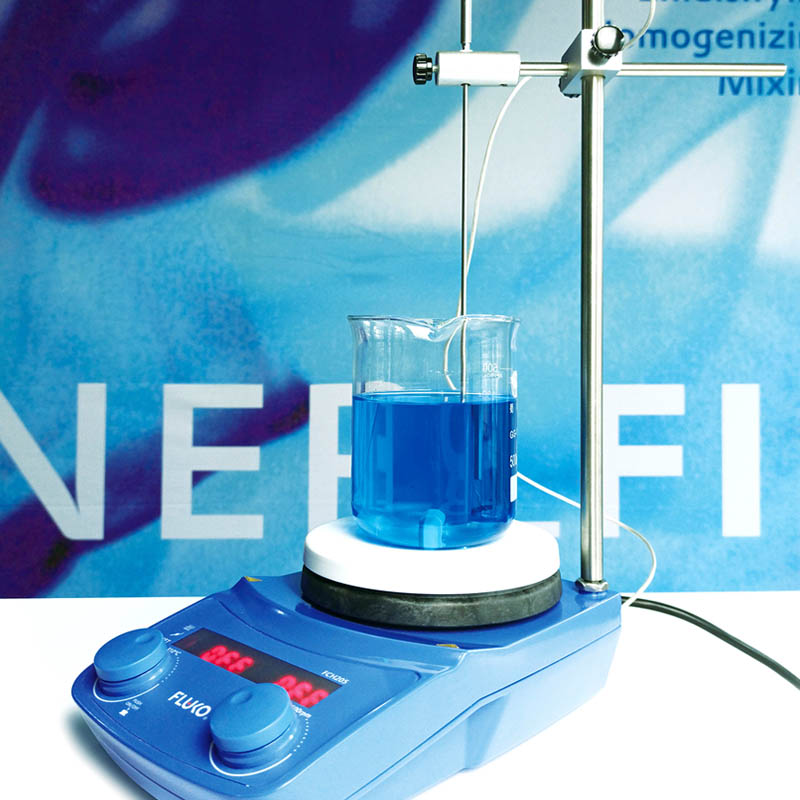

| Model | FCH205 |
| Panel/heating pad size | Φ135mm |
| Capacity of stirring (H2O) | Max.5000mL |
| Input/output power | 30/20W |
| Speed range | 50~1500rpm |
| Minimum speed adjustment | 10rpm |
| Heating range | RT-310℃ |
| Heating accuracy | ±1 |
| Temperature display accuracy | ±0.1℃ |
| Minimum temperature adjustment | ±1℃ |
| Heating output power | 600W |
| Temperature checking | PT1000 |
| Working environment temperature range | 5~40℃ |
| Working environment humidity range | 80% |
| Magnet specification | Φ8×40mm |
| Controller | Digital feedback controller, Jog-Shuttle switch (rotate + press) |
| Display | LED |
| Temperature measurement probe | Yes |
| Temperature measurement stand | Yes |
| Panel Material | Aluminum alloy ceramic coating |
| Main device Material | Aluminum alloy |
| Dimensions | 250×158×92 |
| Weight | 1.90 kg |
| Protection grade | IP42 |
| Power supply | 1phase AC200~240V, 50/60Hz 650W |
