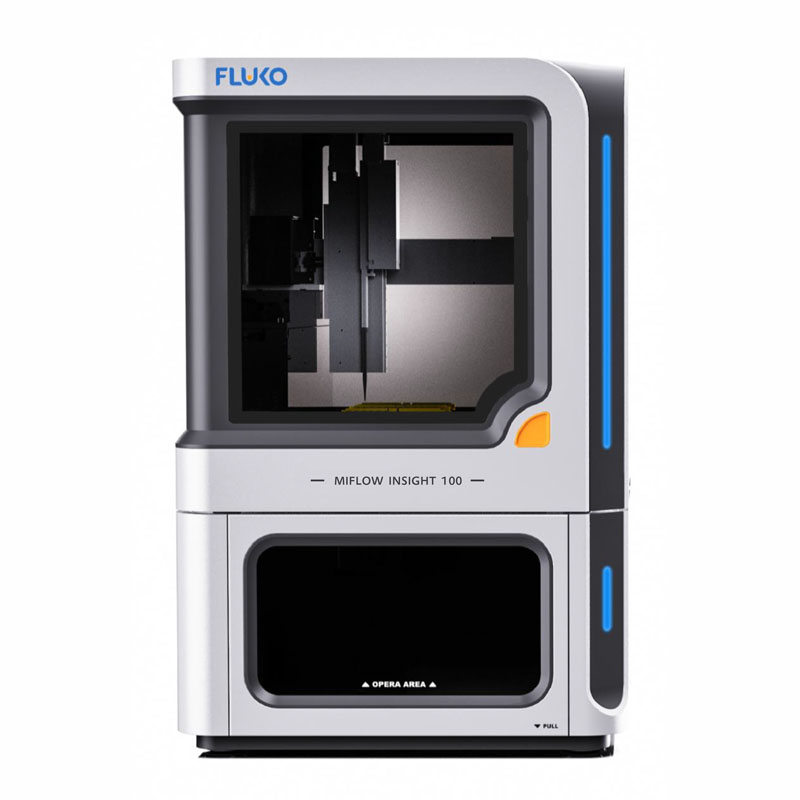

Microfluidic Imaging Particle Analyzer MiFlow Insight 100-1

Microfluidic Imaging Particle Analyzer MiFlow Insight 100-2

FlowView 100 (Auto)

The FlowView 100 (Auto) is a particle imaging analyzer that combines microfluidic technology with AI algorithms to achieve automatic statistical analysis of particle parameters.

Product Details

The FlowView 100 (Auto) is a scientific instrument for high-resolution imaging and automated statistical analysis of suspended particles in liquids. Its core principle involves allowing a sample to flow through a transparent microfluidic channel, capturing high-frequency images of each passing particle in a specific area, and then using AI to classify and statistically analyze the acquired images. This automated system can obtain diverse information related to particles, such as particle size, shape, statistics, and material identification.

Technical Parameter

Model	FlowView 100 Auto
Equipment Power	350 W
Detection Principle	Dynamic imaging method
Detection Range	1-100 μm
Flow Rate Range	100 ul/min~48000 ul/min
Lens Type	High-resolution telecentric lens 0.25 μm resolution
Camera Resolution	25 million pixels
Light Source	Monochrome LED light source
Software Type	AI intelligent analysis software
Flow Cell Material	Quartz glass
Morphological Parameters	Morphological parameters include equivalent ECD, area, perimeter, average pixel value, pixel STD, maximum pixel value, minimum pixel value, convexity, compactness, elongation, roughness, aspect ratio, maximum Fret diameter, symmetry, transparency, eccentricity, roundness
Working Computer	Built-in
Equipment Weight	50 KG
Product Dimensions	Overall dimensions (mm): L519.5 x W474.5 x H791.5 Main unit (mm): L519.5 x W474.5 x H259.5 Autosampler (mm): L519.5 x W474.5 x H532
