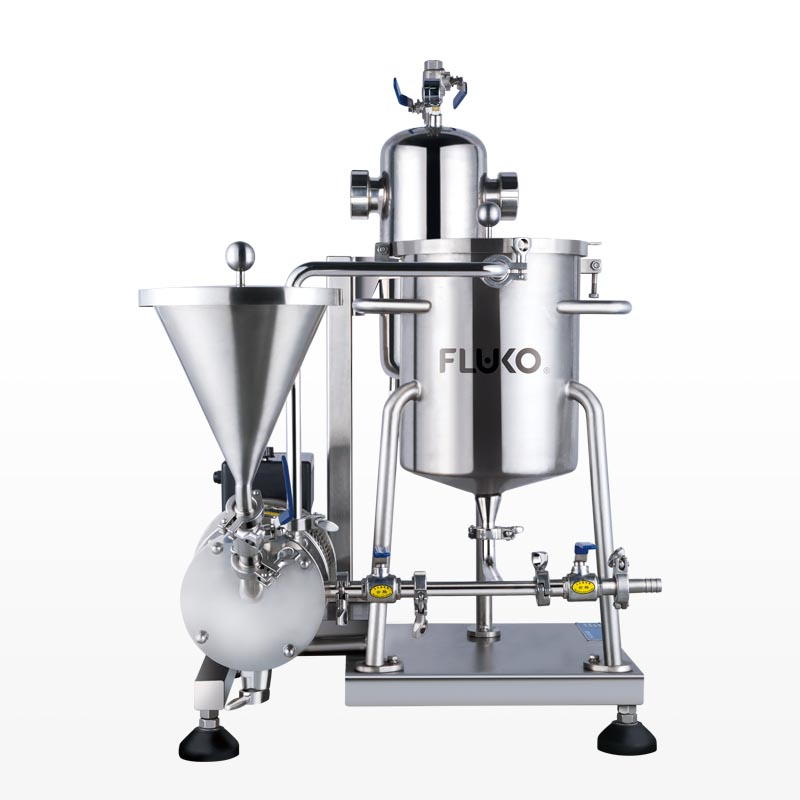

PDH10-ST

The PDH10-ST is a laboratory solid-liquid dispersion and mixing device, suitable for insoluble powders, with low air ingress, no fisheye phenomenon, and supports cyclic dispersion and shearing.

Product Details

The PDH10-ST is a laboratory solid/liquid dispersion and mixing equipment designed specifically for mixing and dispersing powders that are difficult to dissolve. During mixing, it minimizes the amount of air mixed in. Its unique design ensures that the powder is fully pre-hydrated when it enters the mixing chamber, eliminating the "fish-eye" phenomenon. It can effectively reduce mixing time, avoids excessive action on shear-sensitive products, and can perform cyclic processing. The hopper feeding system can quickly complete powder addition, wetting, and dispersion mixing without agglomeration.

Technical Parameter

Order #7012000
ModelPDH10-ST
Motor power2.2kW
Motor speed range2900rpm
Maximum speed of working head5800rpm
Powder suction speed (hopper)0.2~1kg/min
Applicable viscosity  (with pump)1000cP
Inlet pressure0.02~0.1bar
Maximum outlet pressure (during powder suction)0.1bar
Maximum outlet pressure(without powder suction)0.5bar
Maximum flow rate(H2O, without powder suction)2.5(m3/h)
Maximum flow rate(H2O,during powder suction)1.5(m3/h)
