| Order # | 30010 |

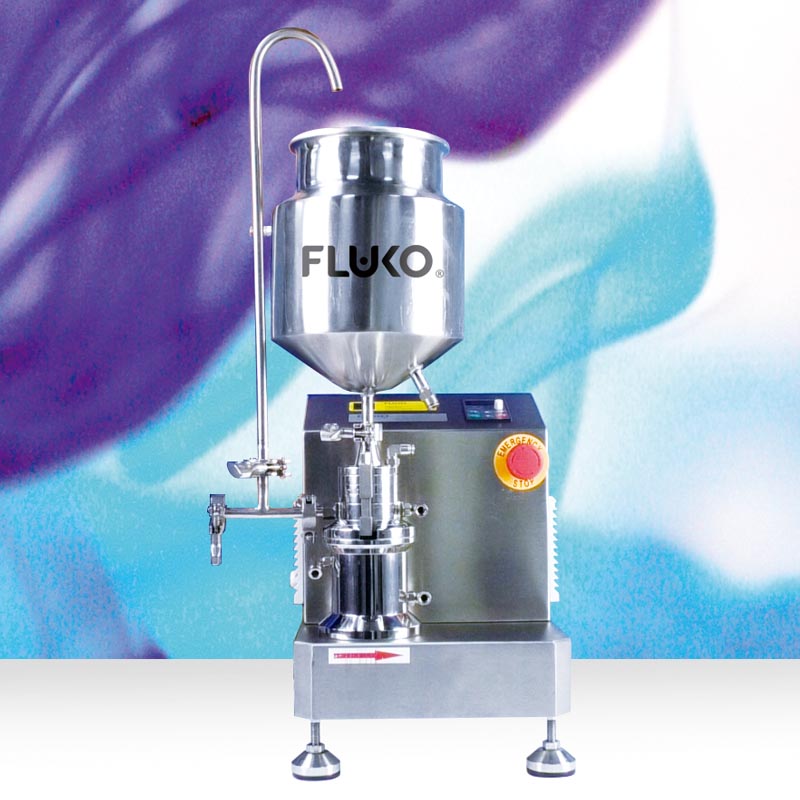

| Model | SMART LAB |
| Power | 1.1kW/2P |
| Power supply | 220V 50Hz |
| Flow rate range | 0~100L/h |
| Agitator output rotation speed | 8800~26000rpm |
| Max output tip speed | 40m/s |
| Control system | Standard |
| Speed display | Digital display |
| Speed control | Stepless(frequency control) |
| Speed adjust way | Digital display frequency converter |
| Wetted part material | SS316L、FFKM/PTFE |
| Non-wetted part material | SS304 |
| Agitator type | Precision tooth shape 2G/4M/6F (according to different process can choose stages of rotor & stator or change the rotor & stator form) |
| Working chamber | Stainless steel working chamber with jacket |
| Jacket inlet/outlet connection way | 8mm hose connection plug type |
| Inlet size | 3/4” |
| Outlet size | 1/2” |
| Inlet/outlet pipe connection standard | ASME BPE clamp |
| Seal type | With lip seal structure (no external coolant structure) |
| Bearing box | With jacket bearing box |
| Bearing box jacket inlet/outlet size | 8mm hose connection plug type |
| Base | Adjustable feet |
| Material of base | SS304 |
| Wetted part material | SS316L、surface electrochemical polishing : ≤0.4um |
| Non-wetted part material | SS304、surface mechanical polishing: ≤0.8um |
| Material of electric control box | SS304、surface brushed treatment |
| Dimensions | 340×280×360 |
| Weight | ~38kg |
