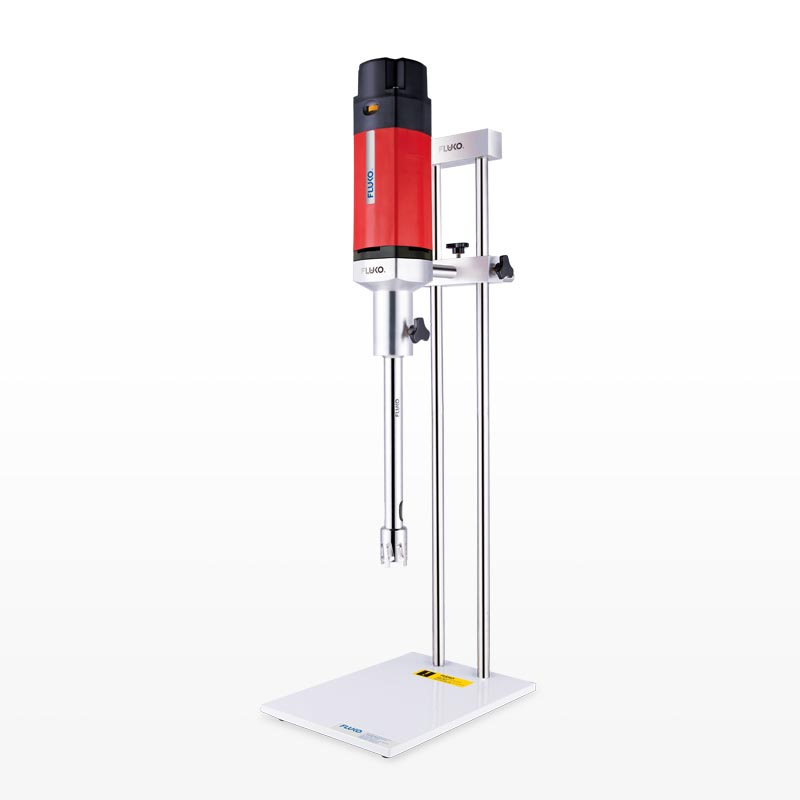

FA40(D)

The FA40 (D) is a pilot-scale high-performance disperser with a maximum throughput of 15L and a linear velocity of up to 35m/s. It is suitable for various process scenarios and is available with an optional digital display version.

Product Details

The FA40(D) is a pilot-scale high-performance disperser with a structured design, capable of long-term operation. It boasts a maximum throughput of 15L and a linear velocity of up to 35m/s, easily meeting the demands of various high-requirement dispersion and emulsification experiments. It is suitable for a variety of processes, including dispersion, emulsification, homogenization, wet milling, dissolution, and suspension preparation. A digital display version is available as an option.

Technical Parameter

Order #62411316341131
ModelFA40FA40D
Motor power1800W1800W
Power supply220V,50/60Hz220V,50/60Hz
Working capacity (H2O)500-15000mL500-15000mL
Maximum working viscosity8000cP8000cP
Speed range2500-23500rpm2500-23500rpm
Speed displayScaleDigital display
Speed controlSteplessStepless
Medium-contact materialSS316LSS316L
Shaft sleeve materialPTFEPTFE
Standard dispersing agitator40M40M
Permissible temperature range5-40℃5-40℃
Permissible humidity range80%80%
Work frame, stand baseStandardStandard
Overall dimensions250×375×860250×375×860
Weight~12kg~12kg
PackageCartonCarton
