FM20D

The FM20D is a small-scale, high-performance disperser with stepless speed control, suitable for dispersing, emulsifying, homogenizing, and mixing medium-viscosity materials and liquids containing solids.

Product Details

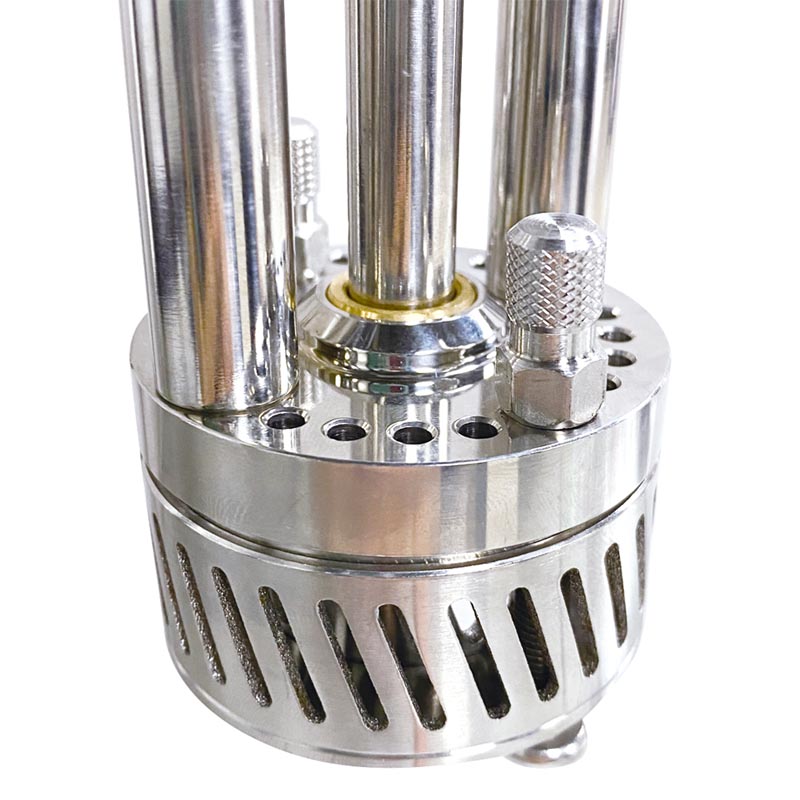

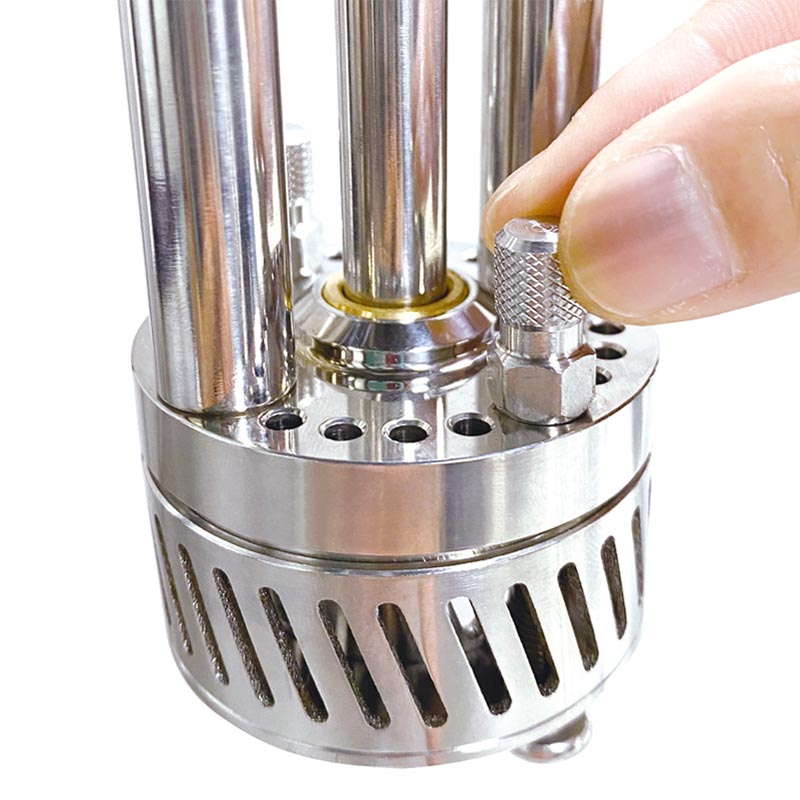

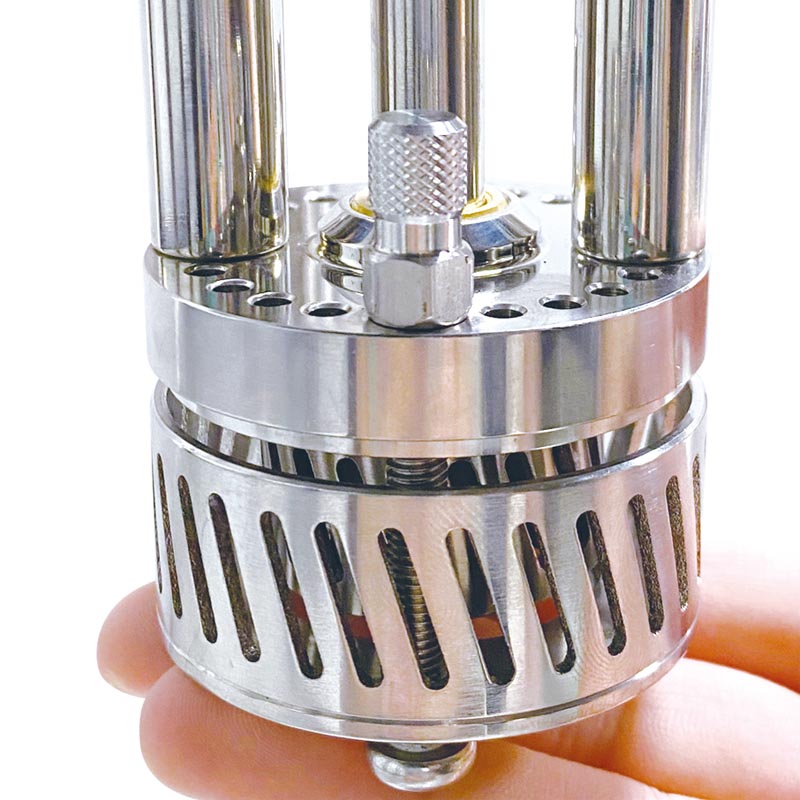

The FM20D is a small-scale, high-performance disperser designed specifically for the fine processing needs of laboratories. It adopts a high-efficiency, high-shear working head and a precision transmission system, enabling stepless speed adjustment to accurately match the strength requirements of different process stages. The equipment is suitable for dispersion, emulsification, homogenization, and mixing processes of medium-viscosity materials and solid-liquid mixtures, and is widely used in research and development in the fields of chemical, pharmaceutical, food, and cosmetic industries.

Technical Parameter

Order #6321000
ModelFM20D
Motor power500W
Power supply220V,50Hz
Working capacity (H2O)150~3000mL
Maximum working viscosity5000cP
Rotation speed range2000~14000rpm
Speed displayDigital display
Speed controlStepless
Standard StatorChute
Medium-contact materialSS316L
Shaft sleeve materialCopper alloy
Permissible temperature range5~40℃
Permissible humidity range80%
Process typeBatch processing
Work frame, stand baseStandard
Overall dimensions210×290×675
Weight~10kg
PackageCarton
