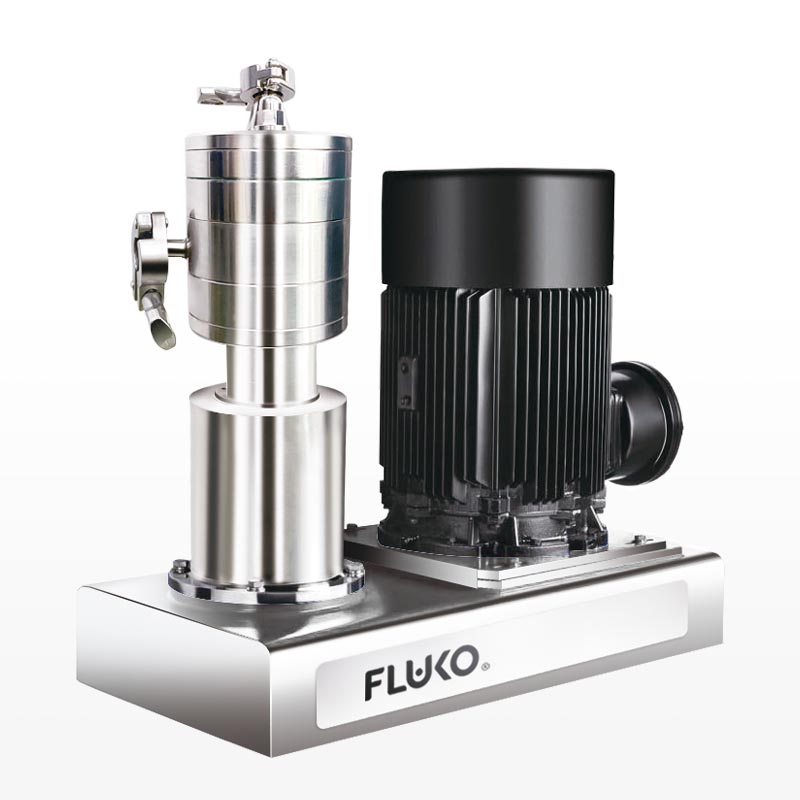

FDH3 series

The FDH3 series is a pilot-scale in-line disperser that adopts a vertical speed-increasing structure and is equipped with a standard three-stage shear configuration, resulting in high material stability and easy integration into production lines.

Get a Quote

Product Details

The FDH3 series is a pilot-scale in-line disperser with a vertical structure for material intake and discharge. It is mainly used for the production of microemulsions, ultrafine suspensions, and other similar products. Through three sets of stator and rotor shear dispersion, the droplets are fine, with a narrow particle size distribution and high material stability. The machine is easy to install and operate, can be quickly integrated into production lines, and is very easy to upgrade and scale up production.

Technical Parameter

Order #67700006771000
ModelFDH3/40FDH3/60
Motor power1500W2200W
Power supply220V，50Hz220V，50Hz
Maximum flow rate range(H2O)15L/min25L/min
Speed range300-6000rpm300-6000rpm
Temperature120℃120℃
Speed displayDigital displayDigital display
Speed controlFrequency controlFrequency control
InverterStandardStandard
Medium-contact materialSS316L、FKMSS316L、FKM
Standard working chamberWorking chamber with jacketWorking chamber with jacket
Standard dispersing agitator4G/4M/4F/3 Stages4G/4M/4F/3 Stages
Seal typeMechanical sealMechanical seal
Inlet/outlet size1’’,3/4’’(Clamp connection)1’’,3/4’’(Clamp connection)
Process typeInline processingInline processing
Overall dimensions570×300×500600×350×550
Protection grade for motor hoodIP54IP54
