The FDC1 series is a pilot-scale in-line disperser with a compact structure, stable operation, and a sanitary design suitable for fine process handling.
The FDC1 series is a pilot-scale in-line disperser that can easily complete in-line dispersion, emulsification, and homogenization processes in the laboratory, providing accurate references for production use. The machine features a compact structure, stable operation, adjustable and displayable speed, and a default design that meets sanitary requirements. It is suitable for processes requiring high precision, such as dispersion, homogenization, crushing, and mixing.
| Order # | 6711000 | 6731000 |
| Model | FDC1/40 | FDC1/60 |
| Motor power | 750W | 1500W |
| Power supply | 220V,50Hz | 220V,50Hz |
| Maximum flow rate range(H2O) | 20L/min | 30L/min |
| Speed range | 300-6000rpm | 300-6000rpm |
| Temperature | 120℃ | 120℃ |
| Speed display | Digital display | Digital display |
| Speed control | Frequency control | Frequency control |
| Inverter | Standard | Standard |
| Medium-contact material | SS316L、FKM | SS316L、FKM |
| Standard working chamber | Stainless steel | Stainless steel |
| Standard dispersing agitator | 4G/1 stage | 4G/1 stage |
| Seal type | Mechanical seal | Mechanical seal |
| Inlet/outlet size | 1’’,3/4’’(Clamp connection) | 1’’,3/4’’(Clamp connection) |
| Process type | Inline processing | Inline processing |
| Overall dimensions | 650×380×370 | 650×380×370 |
| Protection grade for motor hood | IP54 | IP54 |

The FDH3 series is a pilot-scale in-line disperser that adopts a vertical speed-increasing structure and is equipped with a standard three-stage shear configuration, resulting in high material stability and easy integration into production lines.

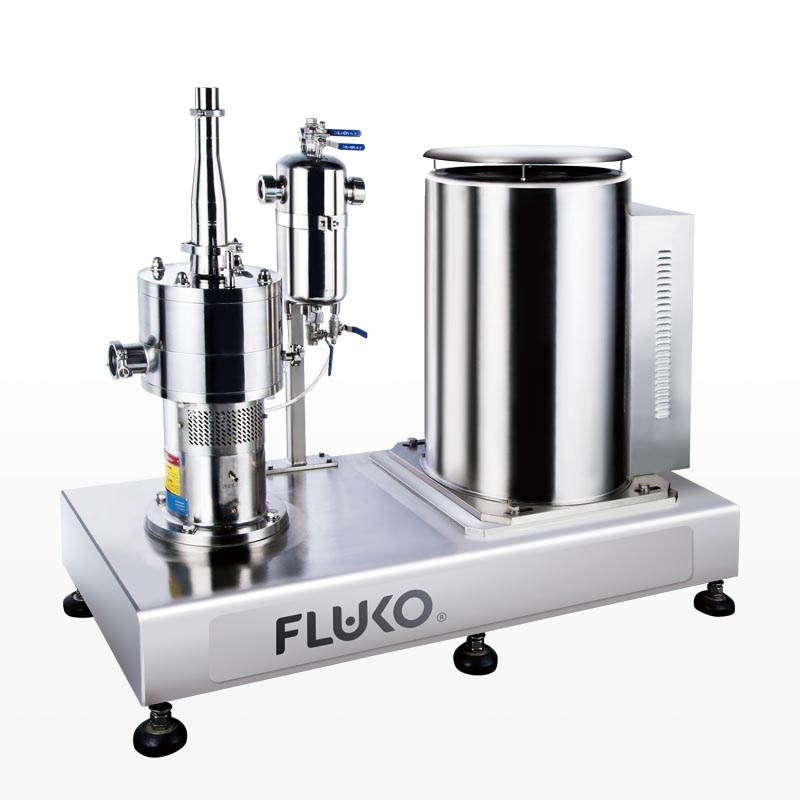

The FDHS series is a pilot-scale ultra-high-speed in-line disperser with a linear speed of up to 40m/s. It adopts a vertical speed-increasing structure, is low-noise, and meets CIP/SIP cleaning standards.

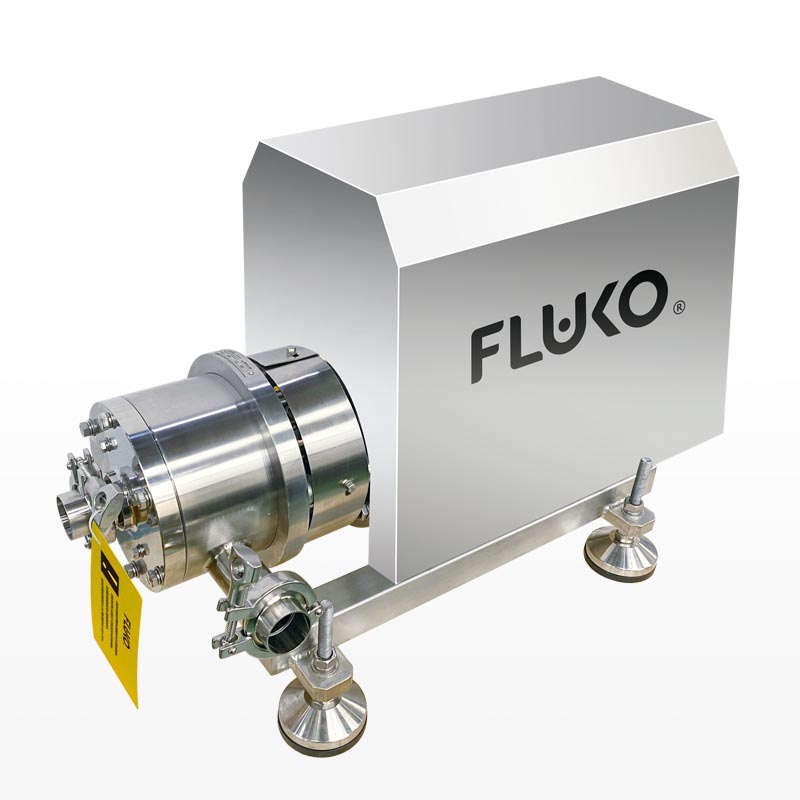

FD1/40SG is a pilot-scale inline disperser. It adopts a narrow-gap working head, providing superior shearing force, meeting hygienic standards, and can be easily integrated into production lines.

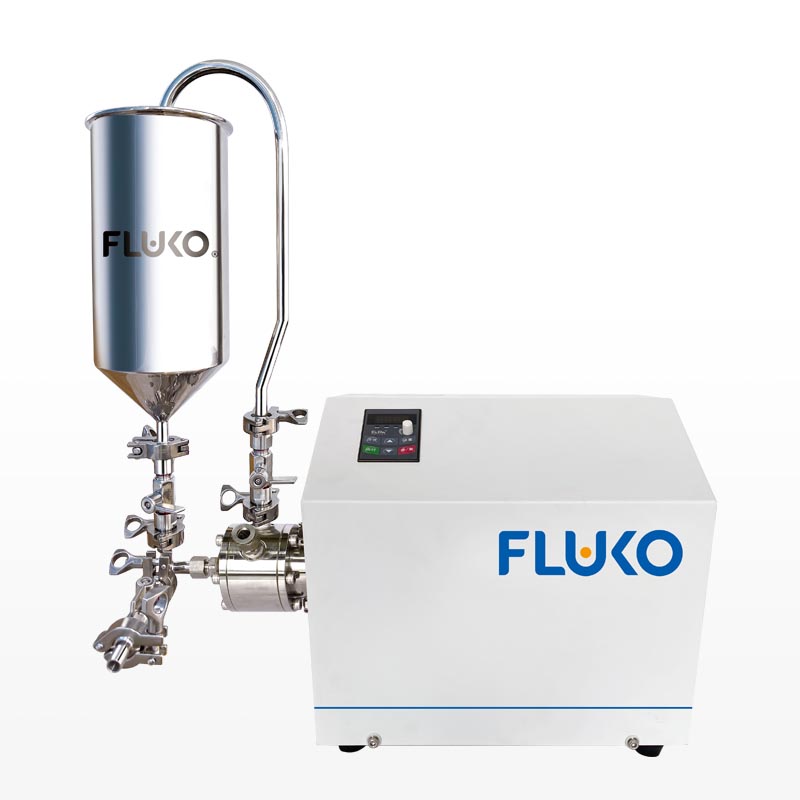

The FD30 is a pilot-scale in-line disperser with a multi-layer stator and rotor configuration. It is resistant to high temperature and high pressure, and the material in contact with the material can be customized.
