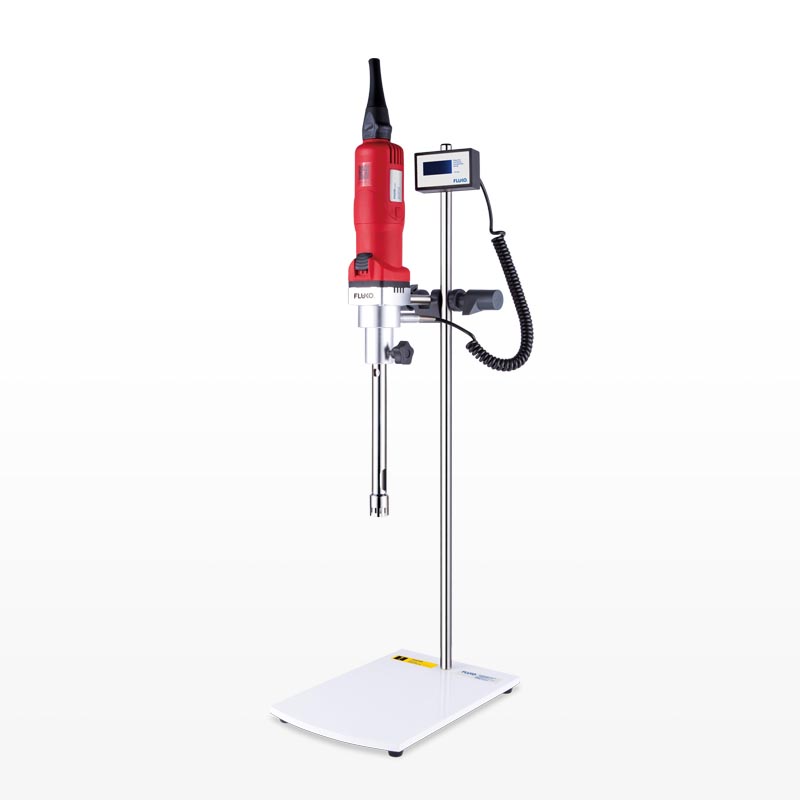

FA25(D)

The FA25 (D) is a pilot-scale high-performance disperser with a lightweight and durable structural design. It achieves a linear speed of up to 27 m/s and is suitable for various process scenarios. A digital display version is available as an option.

Product Details

The FA25(D) is a small-scale, high-performance disperser with a streamlined design, easy operation, strong expandability, and lightweight construction. It can operate for extended periods, achieving linear speeds up to 27 m/s, easily meeting the demands of various dispersion and emulsification experiments. It is suitable for a variety of processes, including dispersion, emulsification, homogenization, wet milling, dissolution, and suspension preparation. A digital display version is available as an option.

Technical Parameter

Order #62210526223052
ModelFA25FA25D
Motor power500W500W
Power supply220V,50/60Hz220V,50/60Hz
Working capacity (H2O)0.2~7000mL0.2~7000mL
Maximum working viscosity8000cP8000cP
Speed range (no-load)10000~28000rpm10000~28000rpm
Maximum tip speed27m/s27m/s
Speed displayScaleDigital display
Speed controlSteplessStepless
Medium-contact materialSS316LSS316L
Shaft sleeve materialPTFEPTFE
Standard agitator25F25F
Permissible temperature range5~40℃5~40℃
Permissible humidity 80%80%
Process typeBatch processingBatch processing
Work frame, stand baseStandardStandard
Overall dimensions215×310×730215×310×730
Weight~10kg~10kg
PackageCartonCarton
