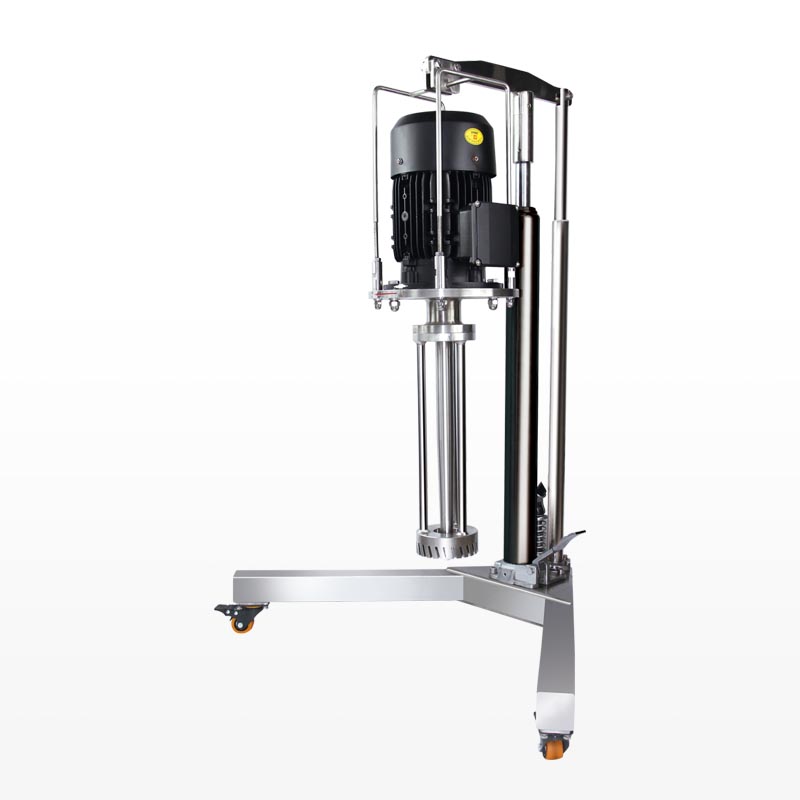

FA90(C)

The FA90 (C) is a pilot-scale disperser with a maximum capacity of 50L. It features interchangeable working heads, supports variable frequency speed control and lifting functions, and offers optional hydraulic manual lifting or electric lifting.

Get a Quote

Product Details

The FA90(C) is a laboratory-scale pilot-scale disperser designed for pilot-scale, simulated production, and small-batch factory production, with a maximum throughput of 50L. It features interchangeable working heads to accommodate different materials and process requirements, enabling efficient mixing, dispersion, emulsification, homogenization, and liquid-liquid mixing of large quantities of materials. The machine incorporates variable frequency speed control, speed display, and electric or manual hydraulic lifting functions.

Technical Parameter

Order #62912416292242
ModelFA90FA90C-242-M
Motor power1500W1500W
Power supply220V，50Hz220V，50Hz
Working capacity(H2O)10-50L10-50L
Maximum working viscosity8000cP8000cP
Speed range600-3600rpm600-3600rpm
Speed displayDigital displayDigital display
Speed controlFrequency controlFrequency control
Medium-contact materiallSS316LSS316L
Shaft sleeve materialPTFE/
Standard dispersing agitator90F90F
Permissible temperature range5-40℃5-40℃
Permissible humidity range80%80%
Protection grade for motor hoodIP54IP54
InverterStandardStandard
Overload protectionYesYes
Process typeBatch processingBatch processing
Work frame, stand baseElectric liftingManual lifting
Work frame, stand base materialSS304SS304
Lifting range400450
Overall dimensions710×550×1060800×650×1000
Weight~50kg~50kg
PackageWooden caseWooden case
